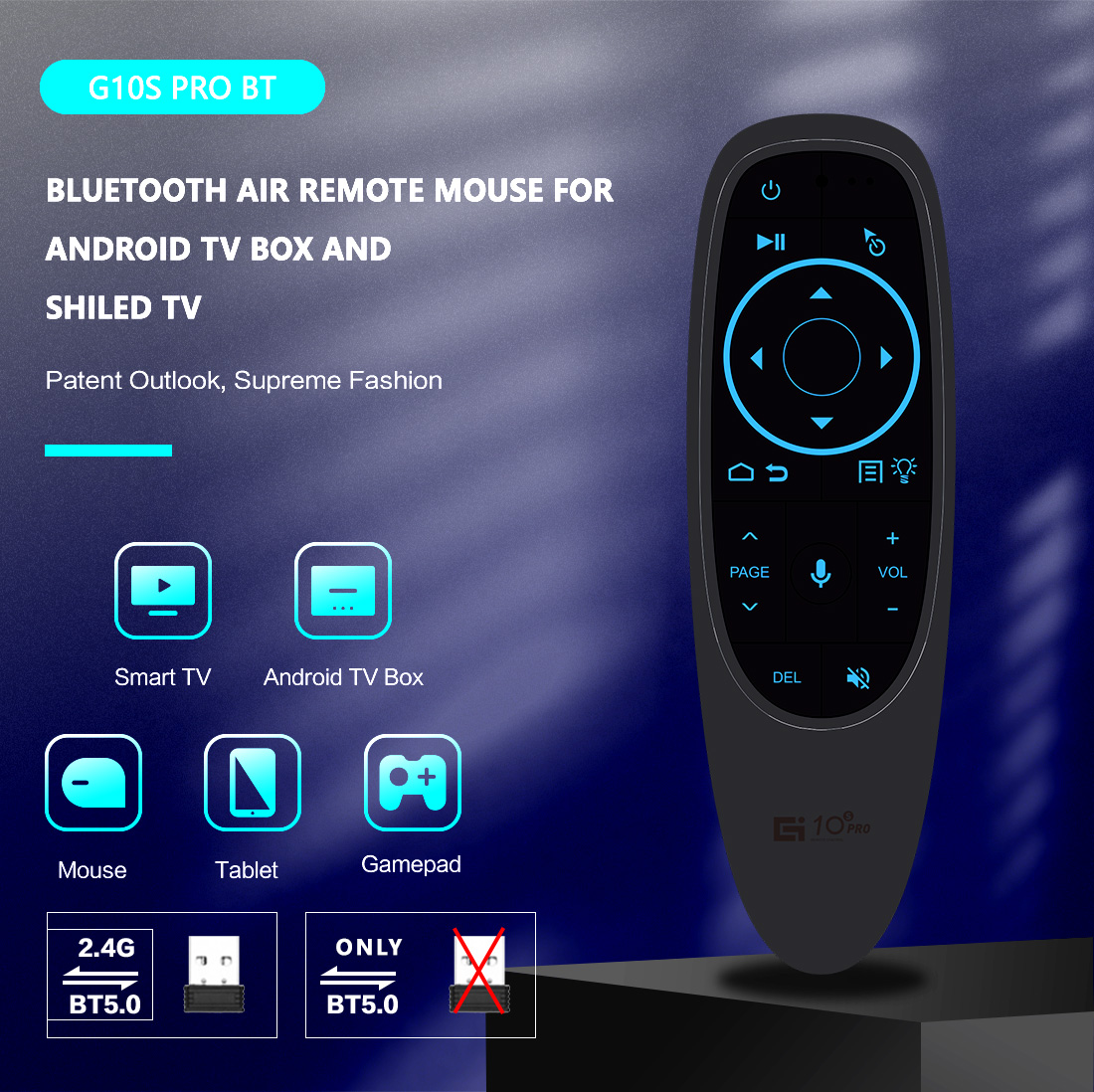

2.4G & BT5.0 Dual Mode Wireless Suab Cua Nas

ODM & OEM

● Private kev cai cim tsim

● Customized logo luam ntawv

● Ntau txoj kev xaiv muaj nuj nqi:

-IR & IR kev kawm, universal IR Programmable -RF (2.4g, 433mhz thiab lwm yam) -BLE -Air nas -Google Assistant lub suab

Xa email rau peb

Product Detail

Khoom cim npe

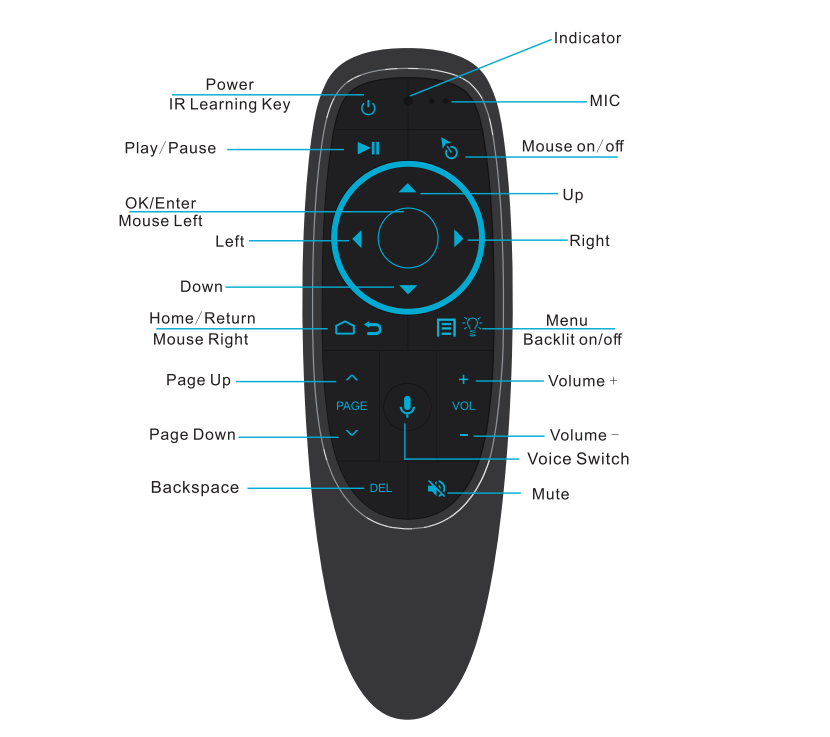

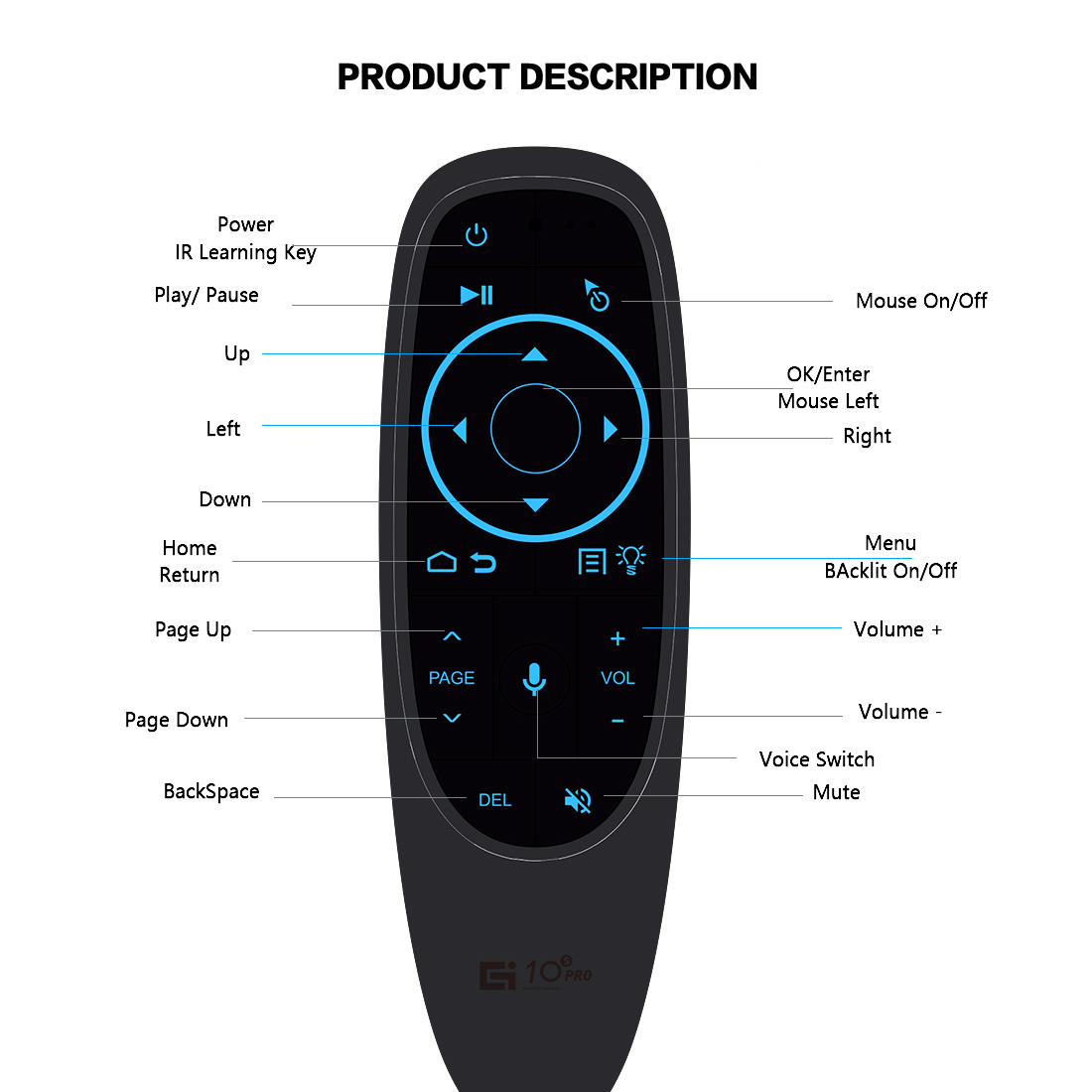

Product Diagram

Ua tsaug rau koj siv peb cov khoom txij li thaum!

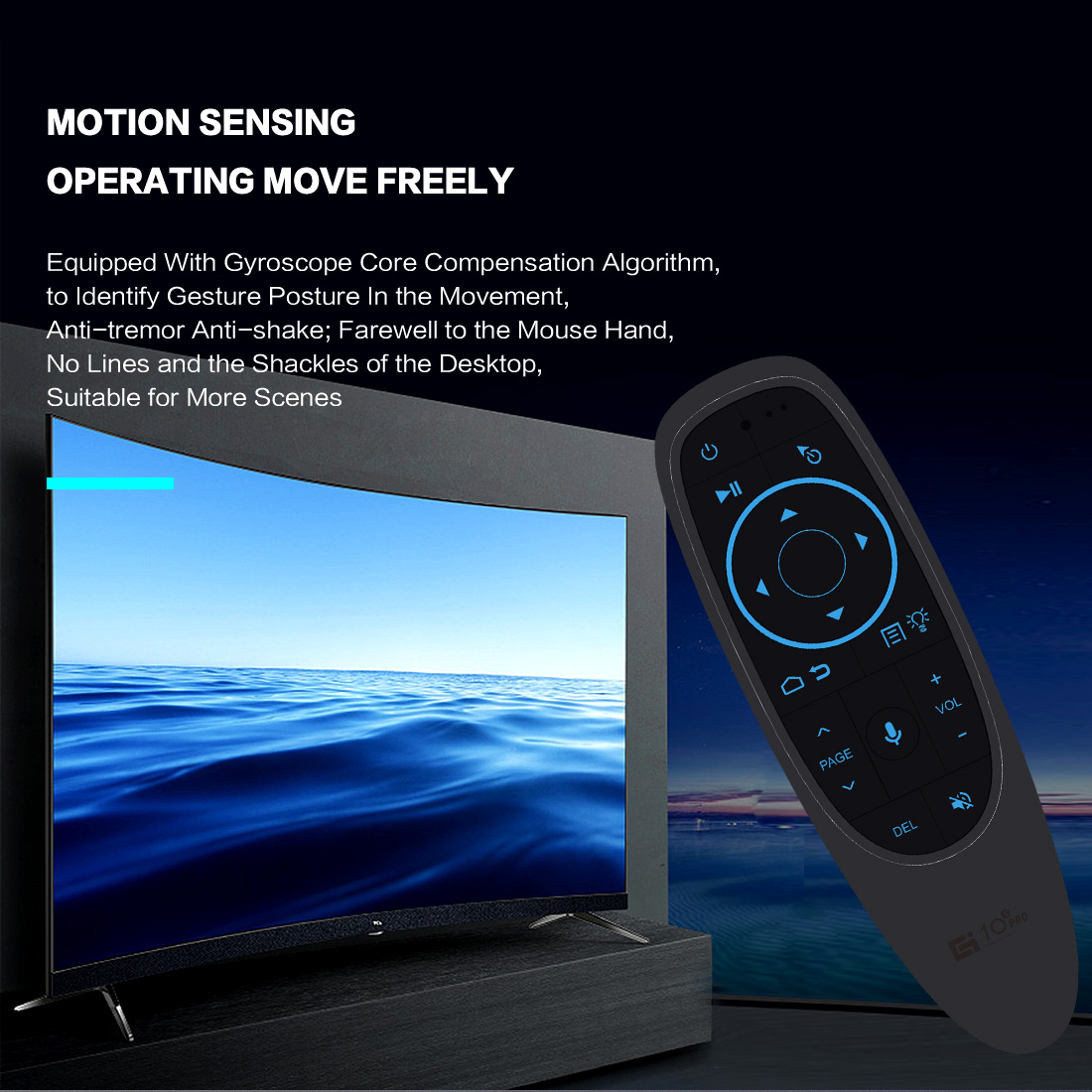

Qhov no yog lub suab cua nas nrog built-in 6-axis gyroscope sensor thiab siab fidelity suab Microphone.Nws tuaj yeem paub txog cov haujlwm ntawm cov chaw taws teeb tswj ib txwm muaj, nas thiab motion sensing game ntawm Android platform.Plug thiab ua si micro receiver rau computers, projectors, TV set-top boxes, HTPC, thiab lwm yam ......

Nws tuaj yeem tso koj tawm ntawm lub khoos phis tawj, TV, qhov projection thiab lwm yam khoom siv rentertainment, tsuas yog xav tau flex koj lub dab teg, cov kev taw qhia ntawm koj lub dab teg yuav hloov mus rau tus cursor ntawm qhov screen.

Xav tias xis nyob, yooj yim, zam kom tsis txhob cov nas ib txwm xav tau qhov tsis zoo rau lub desktop ruaj khov rau kev ua haujlwm lossis infrared chaw taws teeb tswj khawm ua haujlwm, cia koj pw ua si hauv computer, TV tsis nkees, xws li, tag nrho "tswj" koj lub computer, TV.

Khoom nta:

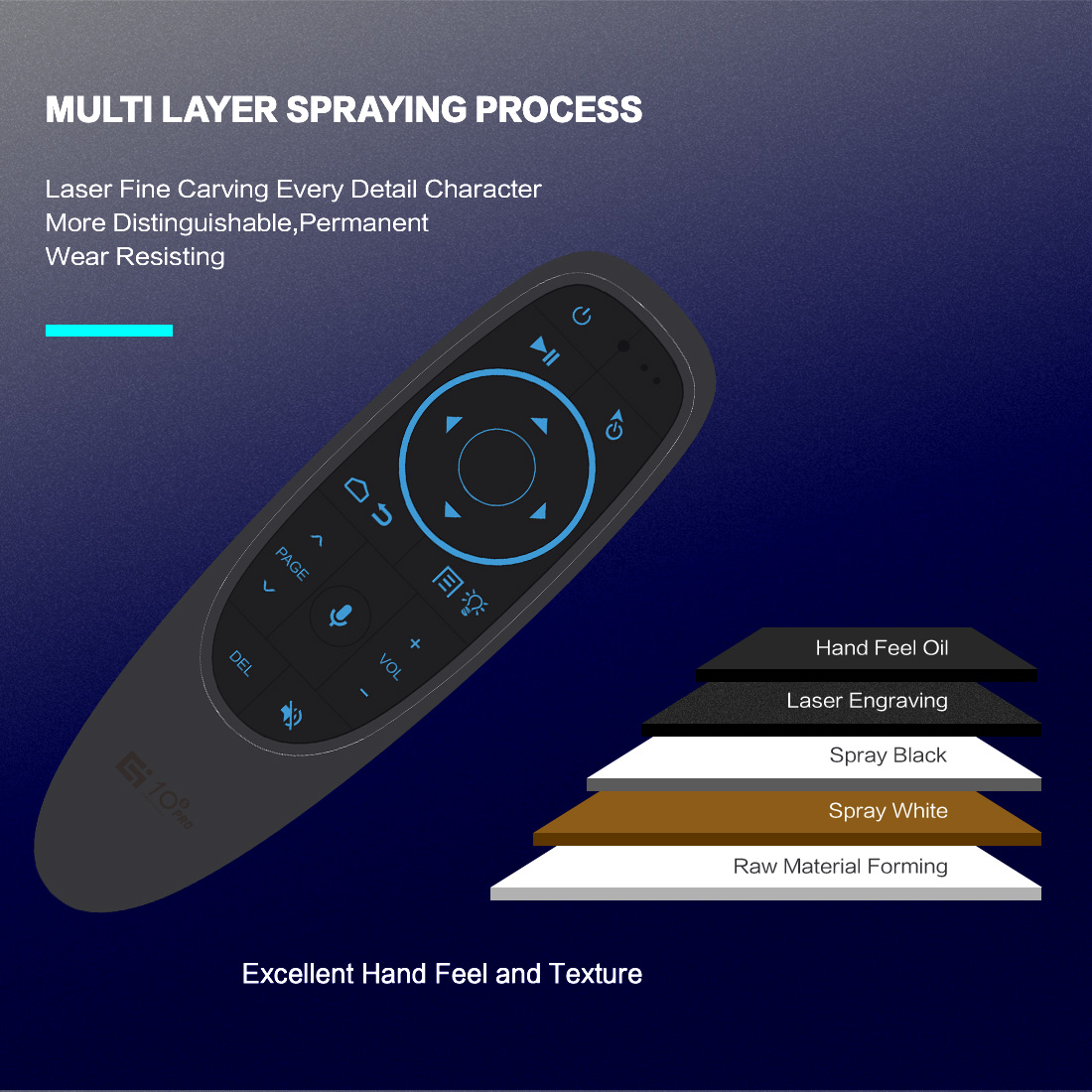

Laser carving Backlit

Dual Hom: 2.4G & BT 5.0

Lub suab nrov zoo

Ua hauv 6-axis gyroscope

Tsawg roj teeb nws pib ceeb toom

Ob qhov tseem ceeb infrared Programming

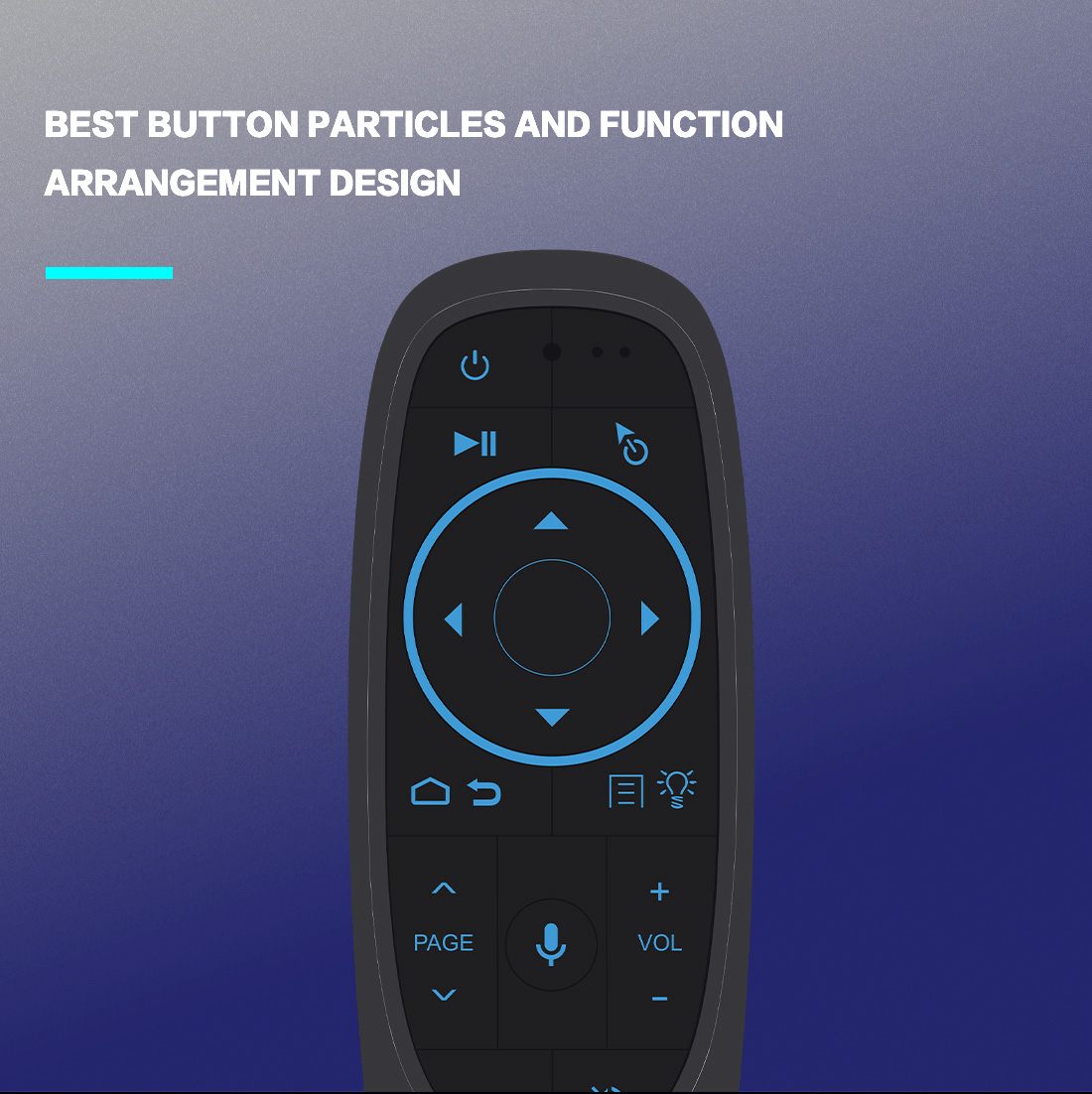

Multimedia tswj shortcut key

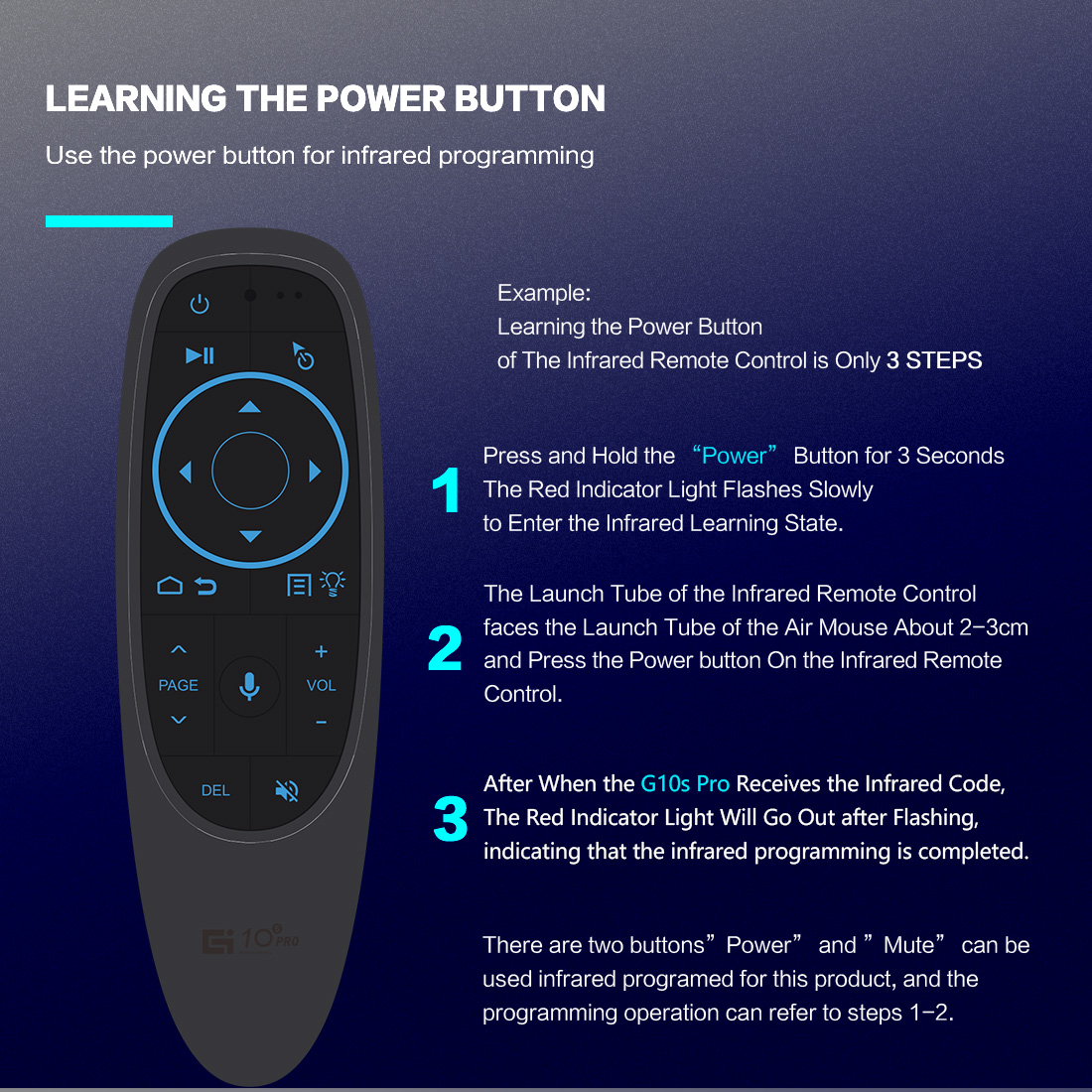

Yuav siv IR Programming li cas

Cov kauj ruam ua haujlwm ntawm infrared programming yog raws li hauv qab no:

(coj kev kawm lub zog khawm ntawm infrared chaw taws teeb tswj ua piv txwv)

1. Nias thiab tuav lub khawm [lub zog] ntawm cov khoom no rau 3 vib nas this.Thaum qhov taw qhia lub teeb nyem maj mam, qhia kom nkag mus rau IR programming hom.

2. Muab cov khoom no thiab koj lub TV tej thaj chaw deb lub taub hau-rau-lub taub hau rau ntawm ib qho chaw tiaj tus nrog 1 nti sib nrug, nias lub khawm [lub hwj chim] ntawm koj IR chaw taws teeb tswj, ces qhov taw qhia lub teeb yuav tawm tom qab flashing, qhia tias infrared programming. ua tiav.

Nias thiab tuav lub khawm [OK] + [Del] rau 5 vib nas this.Qhov taw qhia lub teeb flashes kom rov qab mus rau lub Hoobkas nqis.

Yuav hloov tus Cursor Ceev li cas

Thov tuav [OK] khawm thiab tom qab ntawd dick, Ybu yuav tau txais kev qeeb qeeb ua tiav thaum lub teeb ci LED hloov ntawm ntsais mus rau khoom.

Thov tuav [OK] khawm thiab tom qab ntawd dick,Koj yuav tau txais kev nrawm nrawm dua thaum lub teeb ci LED hloov ntawm ntsais mus rau khoom.

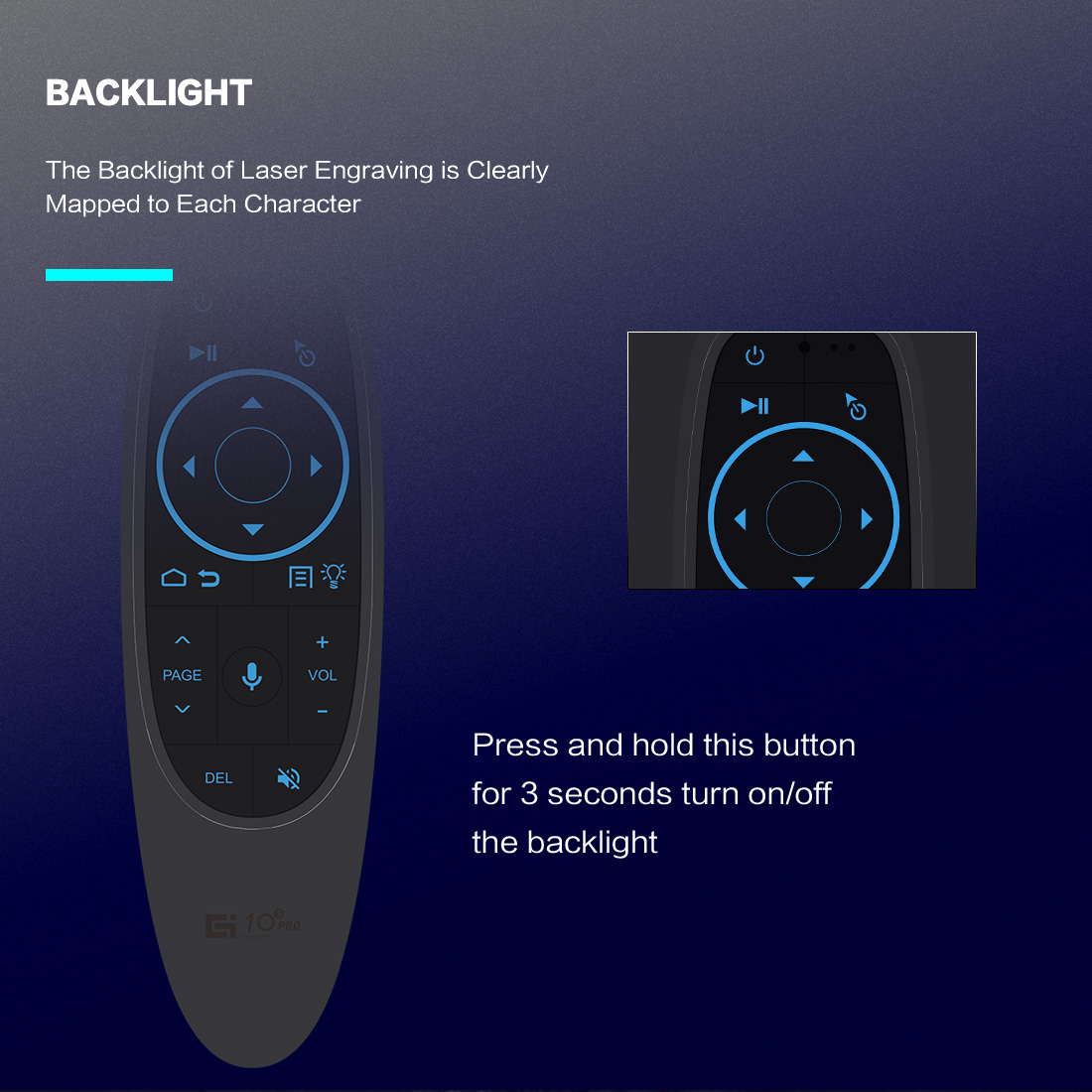

Backlight muaj nuj nqi

Tom qab lub roj teeb tau teeb tsa, lub teeb pom kev ua haujlwm tau pib qhib.Ntev nias lubkhawm kom tua / tawm ntawm lub backlight.

Lub sijhawm ntawm lub teeb rov qab tom qab ua kom tiav yog 5s, thiab nws yuav tsum tau rov qhib dua tom qab 5s.Nias txhua tus yuam sij tuaj yeem ua kom lub teeb rov qab.

Lub suab muaj nuj nqi

Yuav siv lub suab li cas

Nias thiab tuavLub Suab Hloov" los qhib lub suab channel.

Tso tawmtua lub suab channel.

Tsawg roj teeb ceeb toom

Lub teeb liab Dashes maj mam thaum AAA roj teeb lub zog ntawm cov khoom qis dua2 V.Nws txhais tau hais tias lub roj teeb yuav tsum tau hloov lub sijhawm no.

Sensor Calibration

Tsis siv neeg calibration:

thaum lub cuab yeej ua haujlwm, tus cursor yuav drift vim qhov hloov pauv ntawm qhov hluav taws xob thiab qhov kub thiab txias.Thov tso lub cuab yeej rau ntawm lub desktop tiaj tus thiab ua kom nws nyob twj ywm.Tom qab lub cuab yeej hloov mus rau hauv hom quiescent, sawv rov los ua kom tiav calibration.

Phau ntawv calibration:

nias thiab tuav lub khawm [OK] thiab nruab lub roj teeb tib lub sijhawm.

Tom qab lub teeb ntsuab LED tig los ntawm flashing mus rau ib txwm, tso cov khoom ncaj nraim rau ntawm lub desktop thiab tos rau qhov taw qhia tig mus rau flashing, tom qab ntawd ua tiav phau ntawv calibration.

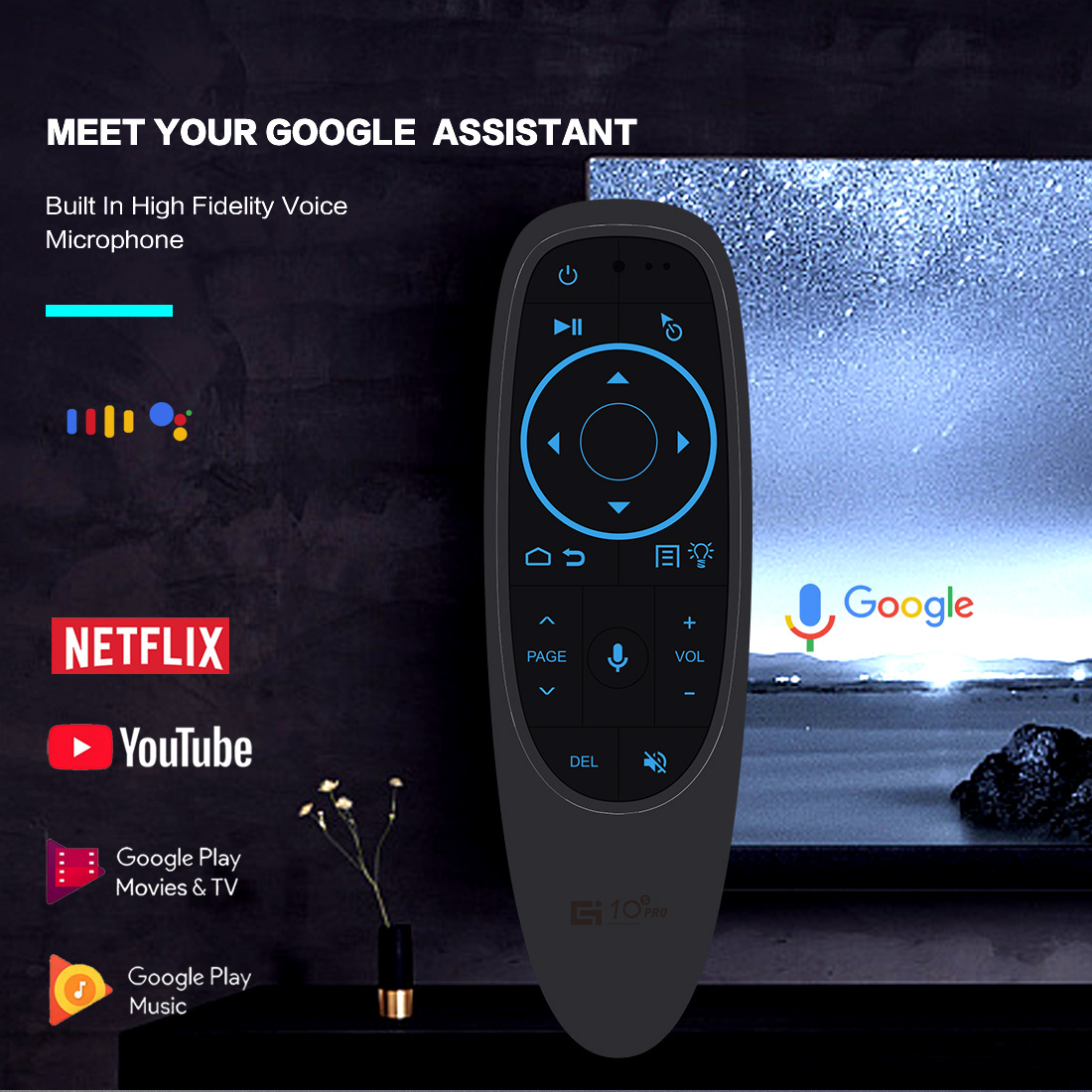

Hais txog lub suab nrhiav:

Thov xa mus rau cov kauj ruam hauv daim duab no rau nruab [Google Chrome] los ntawm [Google play store] .Yog hais tias lub installation tseem tsis tau pib ib txwm, thov txuas ntxiv mus rau nruab [Google play services] .Thaum pib [Google Assistant], thov teeb tsa lub cuab yeej tso cai rau Google kaw suab thiab tso cai rau app tso cai.

Yuav siv li cas

Rau kev siv thawj zaug, ntsaws lub USB receiver rau hauv USB chaw nres nkoj ntawm lub cuab yeej thiab tos 20-60 vib nas this los nruab tus tsav tsheb ntawm USB receiver.Tsiv tus nas, tus cursor nas tuaj yeem txav ntawm qhov screen txhais tau hais tias kev sib koom ua ke ua tiav.

Yog tias nws ua tsis tiav, nias thiab tuav [OK] thiab [BACK] khawm, LED teeb pib flash.Pairing ua tiav thaum lub teeb LED nres flashing.

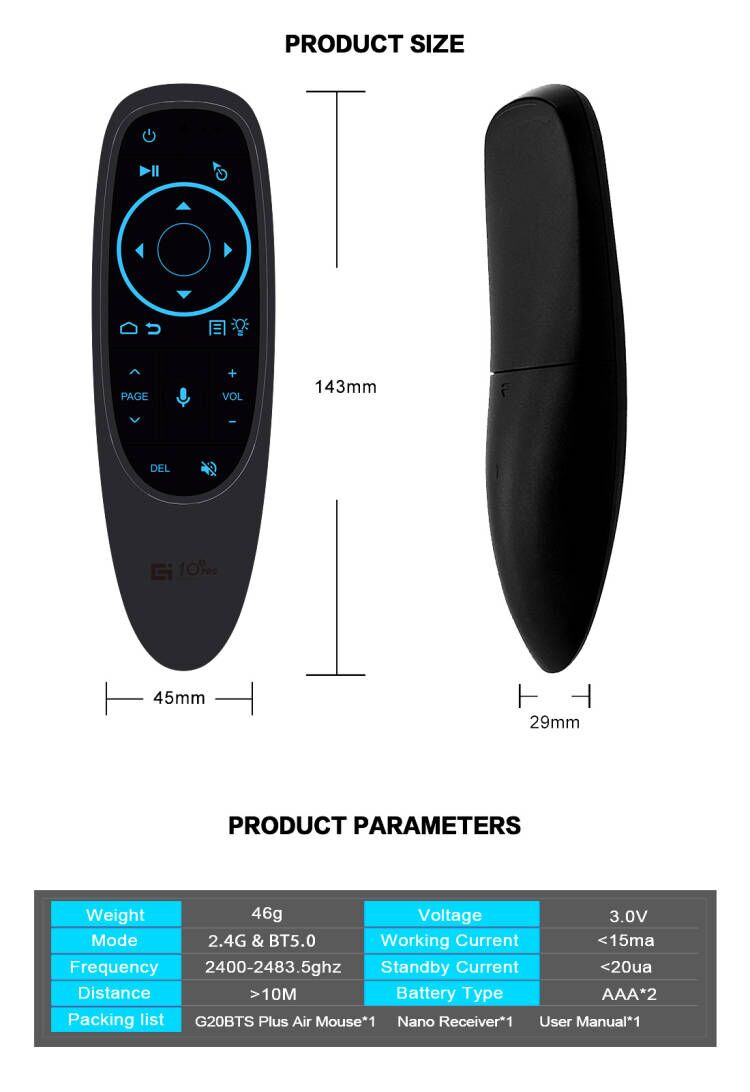

Khoom specifications

Txoj kev sib kis: 2.4G RF wireless

Devices name: G1 OS PRO

Sensors: 6 axis Gyroscope

Tus lej yuam sij: 30

Qhov siab:> 10m

Roj teeb hom: AAA * 2

Khoom siv: ABS yas thiab silicone

Loj: 144 * 45 * 29MM

yuag: 46g

Nco tseg:

1).Air mouse functions:

Qee qhov khoom siv ntau tshaj tawm tej zaum tsis muaj rau huab cua nas, yog li yog tias tus yuam sij [OK] tsis ua haujlwm thaum lub cuab yeej ua haujlwm, thov kaw qhov ntsuas huab cua thiab sim dua.

2).Infrared Transmission Program:

2 tus yuam sij ntawm qhov kev pab cuam infrared tuaj yeem muaj rau ntau lub TV nrov, cov khoom siv suab thiab A / V receiver, tab sis nws tsis haum rau txhua hom hom thiab cov khoom.Raws li qee qhov chaw taws teeb tswj tsis tuaj yeem ua infrared programmed vim Bluetooth lossis wireless xov tooj cua zaus tshuab.Los yog raws li infrared chaw taws teeb tswj yuav siv ib tug txawv txawv / cim infrared code tooj;nyob rau hauv cov ntaub ntawv no, peb cannon program ua tiav.

3).Roj teeb lub zog:

Thov nco ntsoov tias lub roj teeb txaus them.Thaum lub roj teeb qis, qhov ci ntsa iab ntawm qhov backlit thiab kev ruaj ntseg ntawm huab cua nas cursor yuav raug cuam tshuam.

4).Chaw nyob hauv qab ua haujlwm

Qhov chaw tiag tiag ntawm cov cuab yeej no yuav cuam tshuam los ntawm hluav taws xob sib nqus.Thov nco ntsoov tias tsis muaj hluav taws xob cuam tshuam hauv qhov chaw ua haujlwm.

5).BT5.0 Suab tsuas txhawb Android TV.

BT5.0 lub suab tsuas yog txhawb qee cov khoom siv nrog Android TV lub suab ua haujlwm.Qee cov qauv tsis haum rau BT5.0 lub suab, uas yog qhov tshwm sim ib txwm muaj!Nws tsis yog hais txog peb cov khoom!

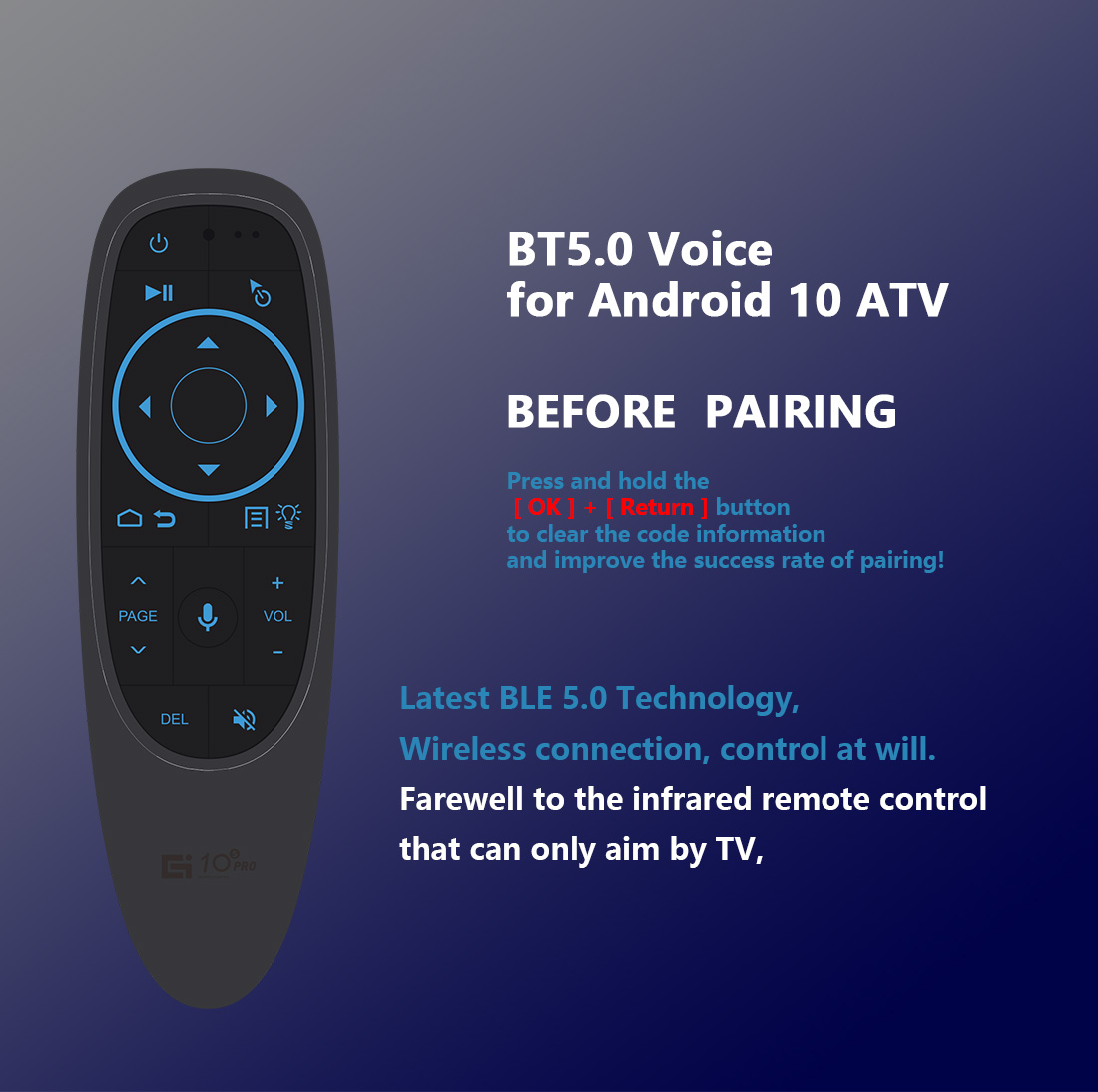

Nqe lus piav qhia txog kev sib koom ua ke BT thiab tshem tawm cov ntaub ntawv sib koom ua ke

1.Ua ntej siv cov cuab yeej no, ua ntej koj yuav tsum qhib lub BT muaj nuj nqi ntawm lub ntsiab ntaus ntawv.

2.Tom qab ntawd ntev pres $ "OK" + "Rov qab" cov yawm sij, thaum lub LED tig mus rau flash sai, cov khoom nkag mus rau prepairing.

3.Nias 'ntxiv kev tshawb nrhiav cov cuab yeej tshiab" ntawm lub cuab yeej tseem ceeb kom pom lub npe huab cua no (Piv txwv: G10S PRO). Nyem lub npe tuaj yeem txuas.

4.Tom qab cov khoom sib txuas ua tiav, cov kev taw qhia ntawm tus nas pointer tuaj yeem tswj tau los ntawm waving hauv huab cua.

5.Yog tias qhov kev sib txuas tsis ua tiav, thov ua cov kauj ruam ua haujlwm ntawm cov khoom 2-4 dua.

6.Reconn ent efficiency piav qhia: Lub sij hawm ib txwm reconnent ntawm cov khoom no yog 3-5 vib nas this tom qab nws yog ib txwm ua khub nrog cov khoom tseem ceeb.

7.Cov khoom no tsuas yog nco ntsoov cov ntaub ntawv sib txuas ntawm ib lub cuab yeej tseem ceeb, thaum cov khoom txuas nrog lub cuab yeej tshiab, kev sib txuas ntawm cov cuab yeej siv keeb kwm tsis txhawb nqa tom qab.

8.nyob rau hauv cov ntaub ntawv no, koj yuav tsum tau tshem tawm cov keeb kwm kev twb kev txuas cov ntaub ntawv ntawm no peripheral yuav ua tau zoo matched rau tshiab nrhiav.
