2.4G chaw taws teeb tswj

2.4G chaw taws teeb tswj yog lub xov tooj cua ntau zaus tswj chaw taws teeb ntawm lub khw.

2.4GHz yog pej xeem zaus, nyob ib ncig ntawm 2400MHz.

Xa email rau peb

Product Detail

Khoom cim npe

yees duab

2.4G chaw taws teeb tswj yog lub xov tooj cua ntau zaus tswj chaw taws teeb ntawm lub khw.

2.4GHz yog pej xeem zaus, nyob ib ncig ntawm 2400MHz.

Txij li thaum lub bandwidth ntawm 2.4GHz zaus band yog dav dua 72MHz, 40MHz, 35MHz (72MHz zaus band tsuas muaj 50 zaus cov ntsiab lus, 2.4GHz tuaj yeem muaj 400 zaus cov ntsiab lus), qhov tshwm sim ntawm qhov zaus zaus dua yog tsawg dua li ntawm. tsoos zaus tej thaj chaw deb controllers.Lub GHz electromagnetic yoj muaj qhov zoo linearity, kav hlau txais xov luv, thiab siv tau yooj yim, yog li nws nyiam los ntawm qee cov neeg nyiam dav hlau.2.4GHz chaw taws teeb tswj muaj ntau cov ntsiab lus siv tau ntau zaus;Tsis tas li ntawd, 2.4GHz xov tooj cua nthwv dej muaj peev xwm muaj zog diffraction, thiab nws tsis yooj yim rau poob tswj thaum muaj teeb meem.

2.4G chaw taws teeb tswj feem ntau yog siv hauv kev sib txuas lus.Nws tsis muaj zog nkag mus ntawm obstacles ~ vim nws yog shortwave.

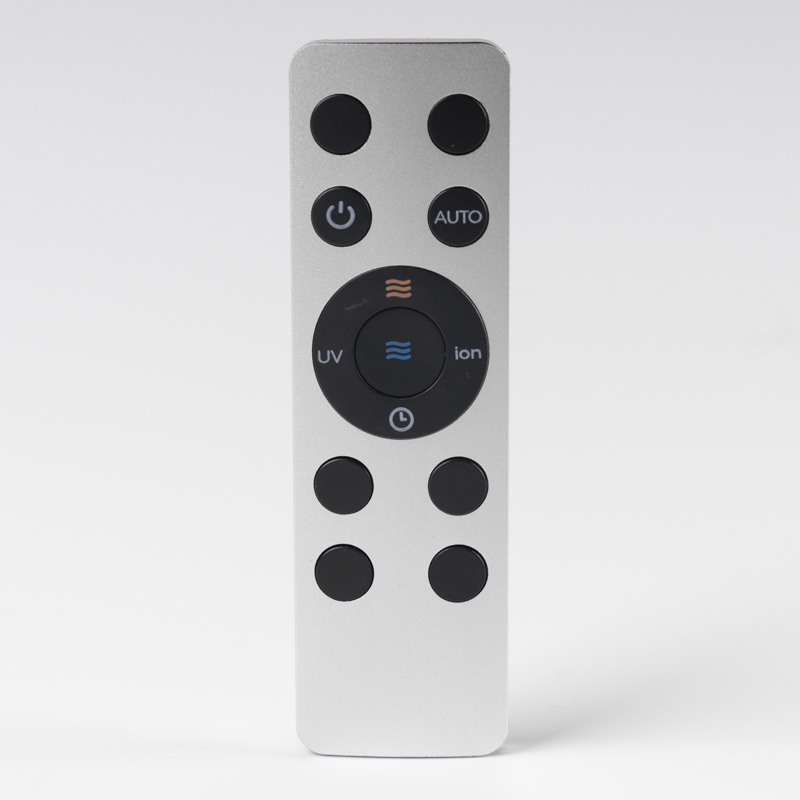

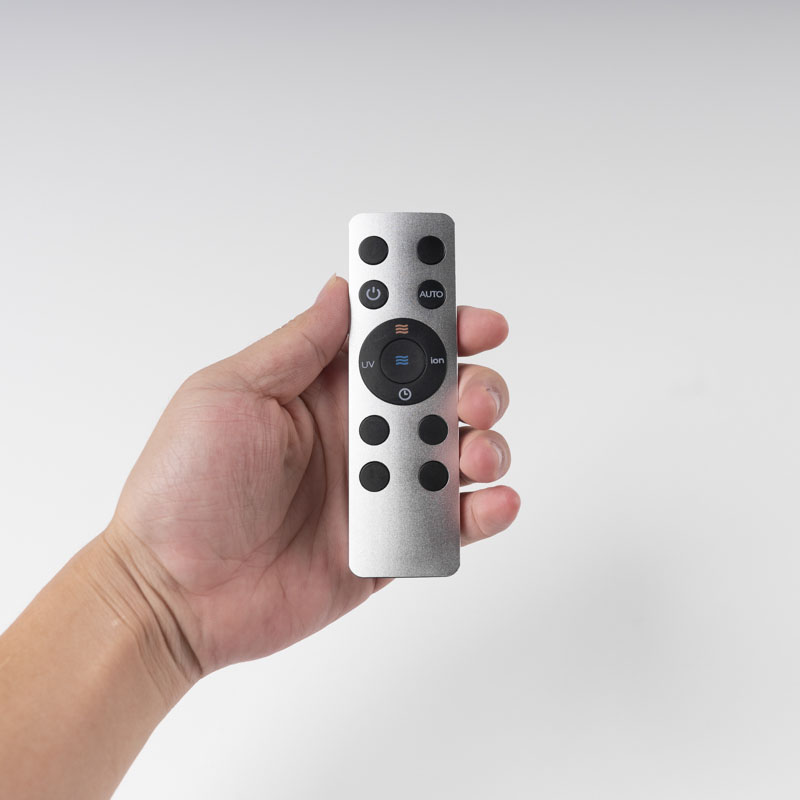

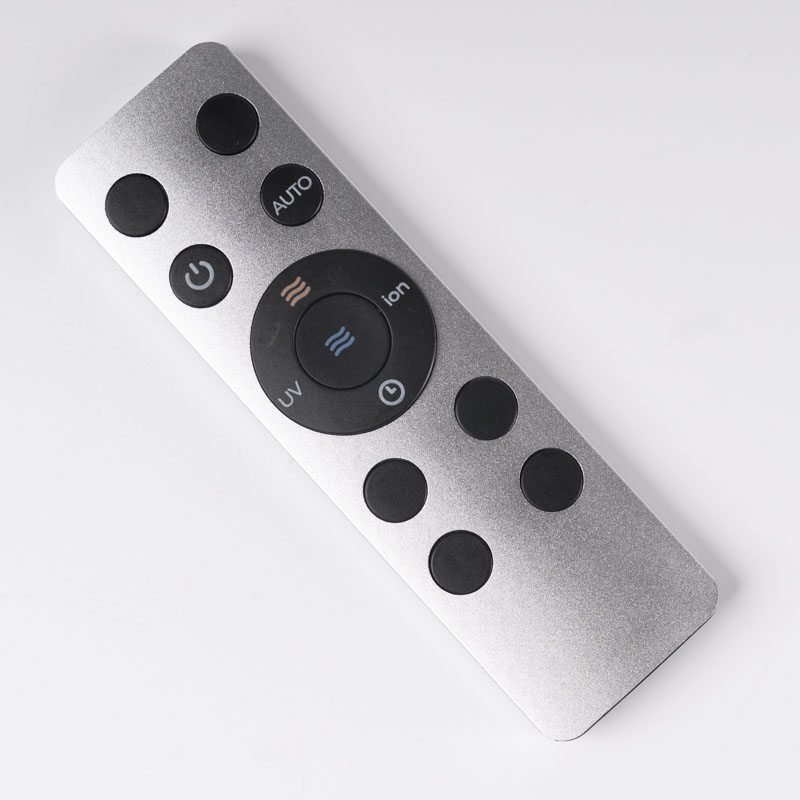

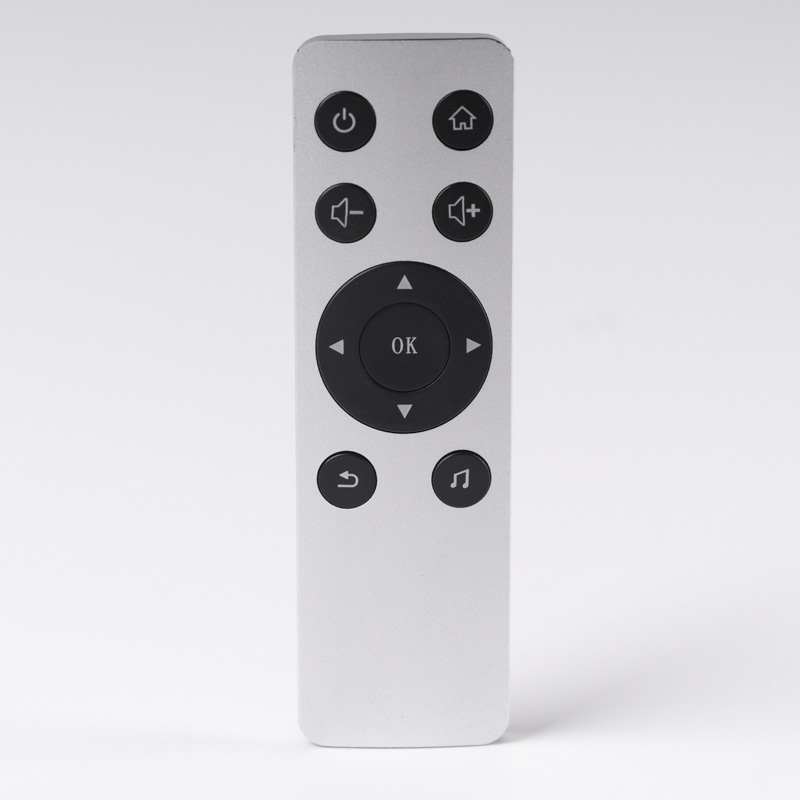

DT-013AL siv lub plhaub txhuas thiab cov nti zoo ua kom tiav 2.4G teeb liab kis tau tus mob.

PRODUCT SPECIFICATIONS
Qauv nab npawb	DT-013 UAS
Khoom	9-tus yuam sij RF chaw taws teeb tswj nrog USB HID receiver
RF	2.4 GHz ISM band (2.4 GHz ISMZaus band)

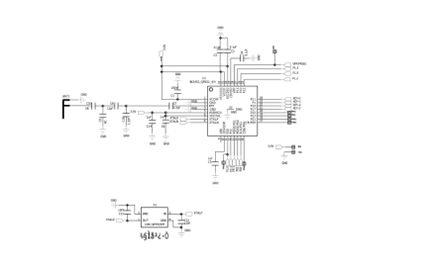

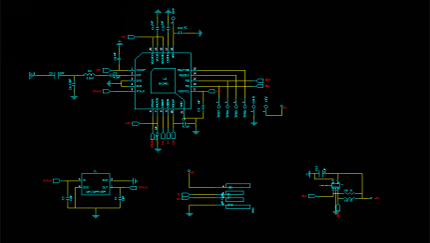

PCB	EP0050406 Schematic daim duab:BK2452_MODULE_V2
Kev sib kis	> 10 m
Loj	120 x 36 x 9 mm
Roj teeb	TIAB SA 2032
txiaj	≥10mA
Ua khub	Pairing: Los ntawm lub neej ntawd, cov chaw taws teeb tswj yuav tsum tau ua ke nrog USB HID receiver ua ntej.Nias ob tus yuam sij tib lub sijhawm rau 3 vib nas this, cov chaw taws teeb tswj nkag mus rau hauv lub xeev ua ke.
HID	Los ntawm lub neej ntawd, cov chaw taws teeb tswj yuav tsum tshwm sim ntawm Android USB tus tswv ua lub npe ntaus ntawv keyboard
HID siv IDs	Thaum nias lub khawm tswj chaw taws teeb, kev sib kis ntawm HID siv ID yuav tsum ua raws li cov lus qhia tshwj xeeb ntawm nplooj 2.
Tsim	Tag nrho cov nyees khawm yuav tsum yog dub nrog dawb silk screen.
	Cov nyees khawm yuav tsum raug cim raws li cov duab kos hauv daim ntawv qhia tshwj xeeb.
	Logo: Cov chaw taws teeb tswj yuav tsum suav nrog LOGO raws li cov duab kos hauv daim ntawv qhia tshwj xeeb.
	Raws li daim duab, cov xim ntawm cov chaw taws teeb tswj yog aluminium alloy thawj xim.


Khoom Cia & Kev Ua Haujlwm Ib puag ncig-20 ℃～60 ℃
Ambient kub
txheeb ze humidity 45%～75% RH		86～106kp ua
Atmospheric siab	Lub teeb ntuj lossis lub teeb fluorescent 200 ± 50LX
Environmental illuminance (siv)
Khoom siv & Xim StyleAluminium
plhaub khoom
Cov khoom siv yas ABS / --- ■ dawb □ dub		ABS
Cov khoom siv khawm	FR4
Cov khoom siv PCB	Kev xa mus:wb 2452Tus Qauv Zauv: BK2451
Chip	2.4g ua
Chaw taws teeb tswj transmitter	Nplooj ntawv tom ntej
Chaw taws teeb tswj transmitter code rooj	Nplooj ntawv tom ntej
Khoom zoo li tus tsim	9.8 * 35.8 * 120.6
Khoom Loj	39g ua
Khoom hnyav	Khawm roj teeb

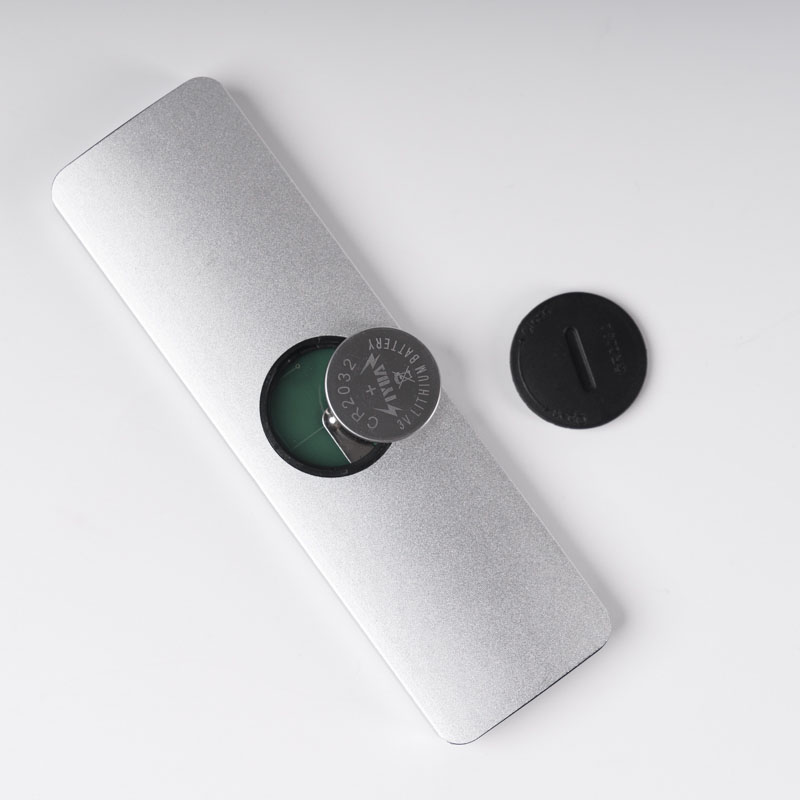

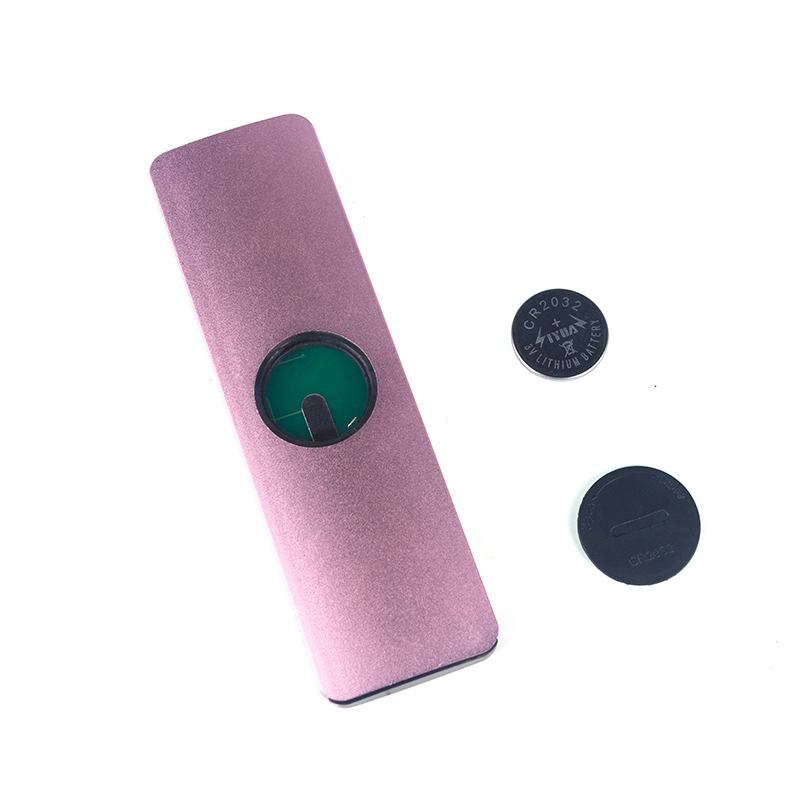

Roj teeb	Khawm Cell CR2032
Roj teeb specification
Kev xeem Standard(Kub = 25 ℃)(Product Feature)DC 3 V
Rated ua hauj lwm voltage
Kev khiav hauj lwm voltage DC 2.4V-5.0V		± 15mA
Kev ua haujlwm tam sim no	≤ 5 ua
Stand-by tam sim no	30mAV/time
Xa lub zog	≥15M (Axis kev taw qhia; tsis muaj kev cuam tshuam, tus qauv txais khoom)
Tua tawm deb	N/A
Directional tso lub kaum sab xis	≥8M (2.5V axis kev taw qhia; tsis muaj kev cuam tshuam)
Undervoltage kis nrug deb	≤ 2 hli
Dawb qhov siab ntawm cov yuam sij	180(± 20)g
Khawm quab yuam	≥10 lab lub sijhawm
Khawm load lub neej	76cm ua(Hard pem teb)/ 100cm (ntoo hauv pem teb)
Dawb poob xeem	6 次(Ib zaug ib sab)
Lub caij nplooj zeeg dawb	Peb-dimensional kev taw qhia;1.5 hli amplitude;500-3300 zaug / sec
Kev vibration test (30 min)	60 ℃(72h ib)
Kev ntsuas kub cia	-20 ℃ (72 teev)
Kev ntsuas kub qis qis	40 ℃ txheeb ze humidity 90%
Kev ntsuas qhov av tsis tu ncua
(Ntim)
Ntim: PE hnab (PE-LD)	380PCS / CTN
Thawv
